India Fan Corporation is one of India's Oldest, Most Trusted and Innovative brands in the service of the nation. we adhere to a strict "zero defect" policy and have always been ensuring excellence and impeccable performance when it comes to our products and services. We are market leaders in the "Fan trade" with a variety of Fan products such as Axial Flow Fans, Centrifugal Fans, Pedestal and Wall Bracket Fans, Wall Fans,Table Fans, Ceiling Fans, Heavy Duty Exhaust Fans, Roof Extractors, Ventilation Fans, Man cooler Fans,etc .We are the leading supplier and manufacturer when it comes to Great Quality Industrial and Domestic Fans, HVAC and Ventilation systems.
"India Fan" offers the latest and updated range of centrifugal fans with unique combination of volume and pressure with high zone of flexibility. These fans are exclusively used for air pollution control, ventilation, dust/frame extraction, evaporative Cooling etc. High efficiency, aerodynamically balanced impellar, heavy duty, sturdy construction ensure fullest return of your investment.
Landline : 033-2225 4430 / 033-4004 0615.
Mobile : +91 98300 41840

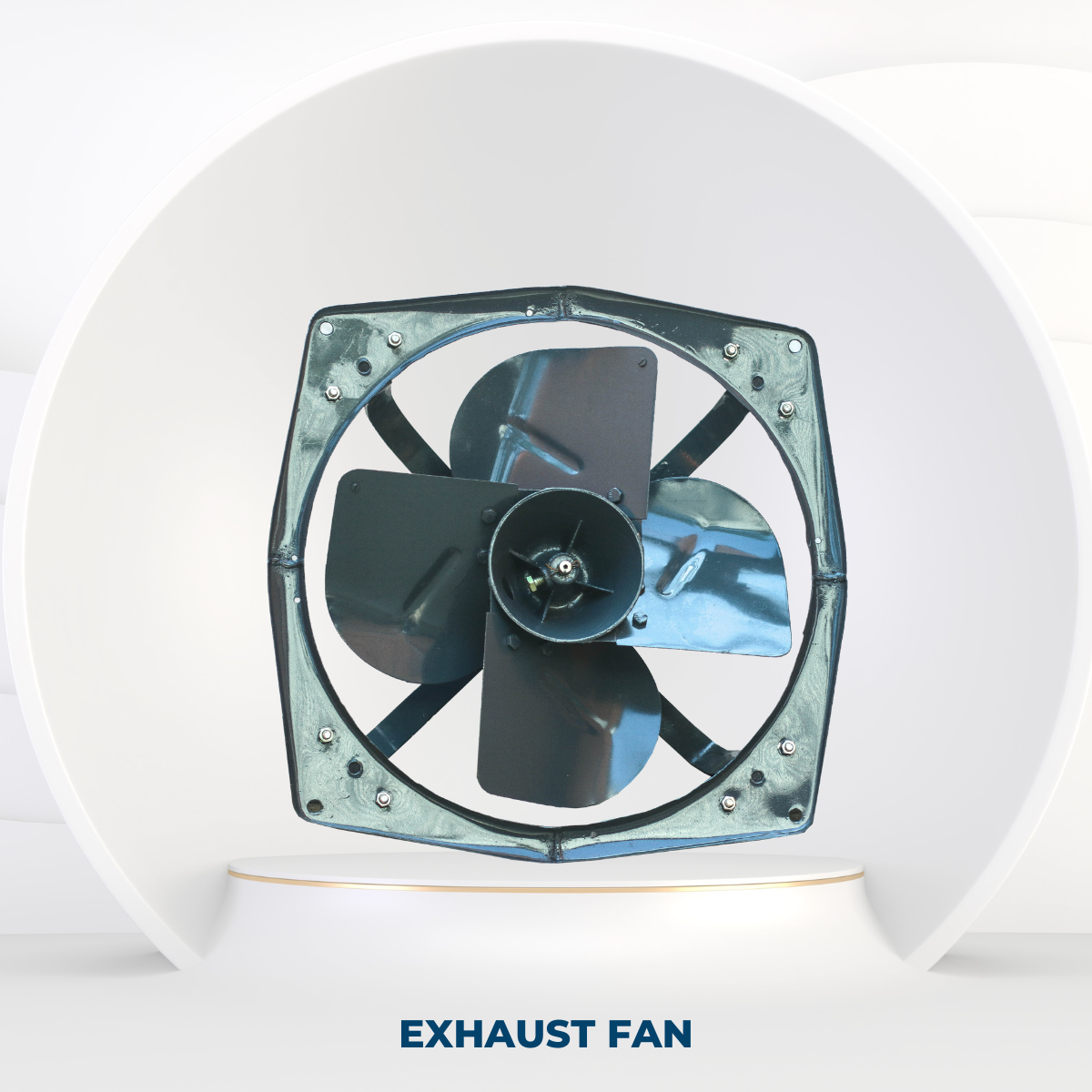

"India Fan" exhaust fans are prefect fans conditioning for any ventilation and pollution problem. 'India fan' exhaust fans are robust with low sound level and incorporate the best in fan engineering and design.
The fan motor is totally enclosed with the rotor on ball bearings. 'India fan' exhaust fans conform to IS-2312 of 1976.
'India Fan' offers widest range of exhaust in single & three phase with special treatment for corrossive, acidic or alkaline operating conditions.
SWEEP | PHASE | R.P.M | VOLTS | POWER CONSUMPTION (WATTS) | AIR DELIVERY | ||
---|---|---|---|---|---|---|---|
INCH | MM | C.F.M. | M' PER HOUR | ||||
9" | 229 mm | Single | 1350 | 220 | 40 | 440 | 750 |
12" | 305 mm | Single/Three | 900 | 220/440 | 55 | 700 | 1200 |
12" | 305 mm | Single/Three | 1400 | 220/440 | 82 | 1120 | 1900 |
15" | 381 mm | Single/Three | 900 | 220/440 | 85 | 1450 | 2460 |
15" | 381 mm | Single/Three | 1400 | 220/440 | 160 | 2350 | 4000 |
18" | 457 mm | Single/Three | 900 | 220/440 | 132 | 2550 | 4340 |
18" | 457 mm | Single/Three | 1400 | 220/440 | 370 | 4000 | 6800 |
24" | 610 mm | Single/Three | 700 | 220/440 | 240 | 4650 | 7900 |
24" | 610 mm | Single/Three | 900 | 220/440 | 500 | 6150 | 10450 |
30" | 762 mm | Three | 700 | 440 | 700 | 9000 | 15300 |
36" | 914 mm | Three | 550 | 440 | 700 | 12900 | 22100 |
36" | 914 mm | Three | 700 | 440 | 1200 | 16500 | 28000 |
Landline : 033-2225 4430 / 033-4004 0615.
Mobile : +91 98300 41840
Wall cowls are made from mild steel and ensure adequate positions. They reduce free air delivery by only 10%.
Louvre Shutters comprise aluminium louvres of light construction which are opened by fan draught and closed by gravity when the fan is switched off. Recommended air velocity between 335m / min. to 455 m/ min.
Wire guards are made from heavy gauge wire rod with all joints and crossings welded. They protect both the motor and impeller sides of Industrial fans.

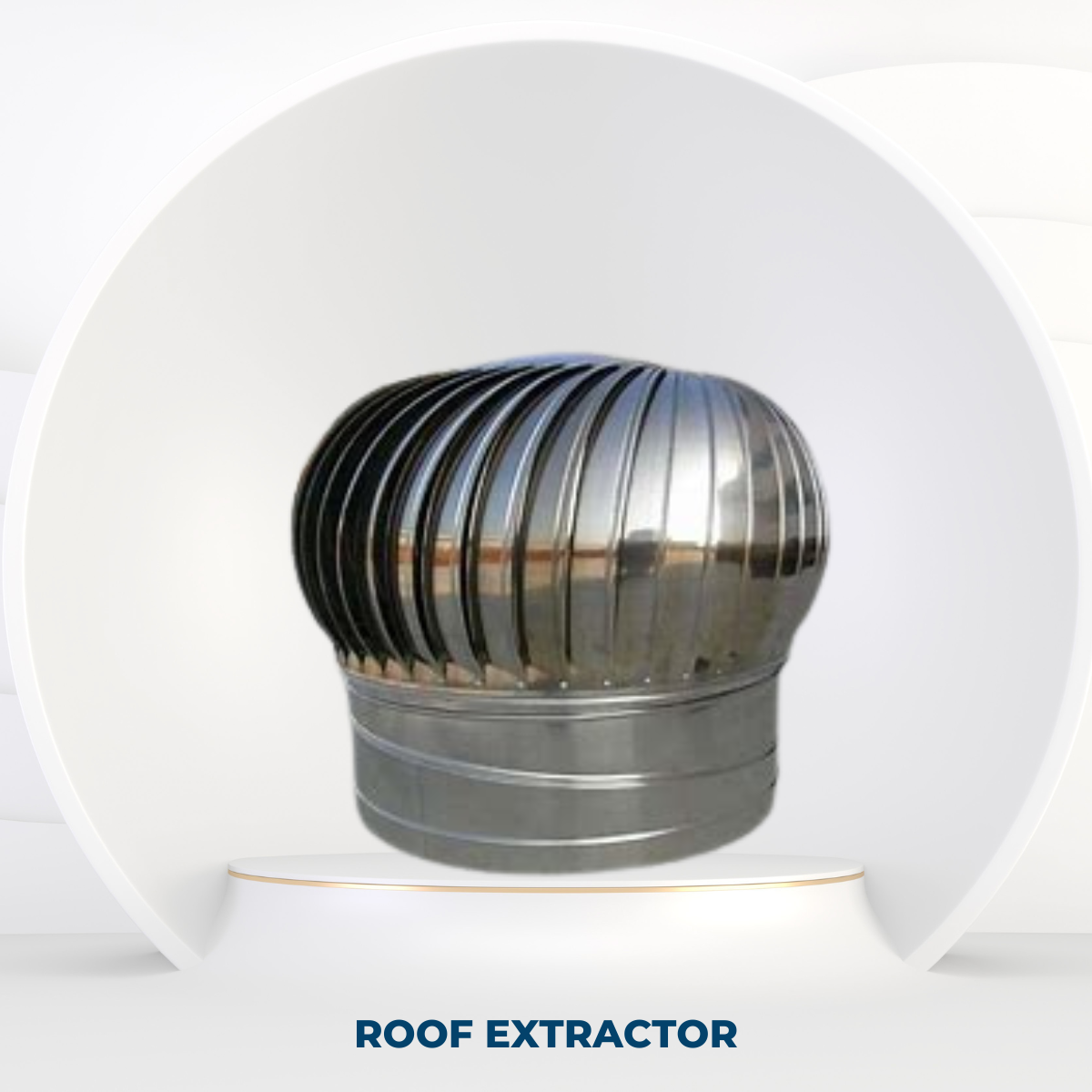

Roof extract units with low streamlined body and cowl are widely used for rapid removal of heat, smoke or fumes from stores, factories and warehouse. These units are light weight and anti-corrosive. the hinged cowl has been designed to give easy maintenance of the fan.
Landline : 033-2225 4430 / 033-4004 0615.
Mobile : +91 98300 41840
"India Fan" man coolers have been the perfect means of blowing a large volume of high velocity powerful air stream over a long distance with an effective cooling and comfort for worker to deliver peak performance since 1847. 'India fan' man coolers are robust in design and consist of specially designed aerofoil impeller of cast aluminium alloy (Im 6 rod) of high efficiency.
"India Fan" man coolers are available in pedestal, bracket and tubular modals, Pedestal & bracket models can be rotated on vertical axis as well as horizontal axis. If desired the angel or Air stream can be adjusted in tubular model of 'India Fan' man coolers. Roller casters may be fitted to the pedestal model.
"India Fan" man coolers are widely used in foundries, furnaces, steel rolling mills, heat treatment plants or rubber drying, Drying of perishable, edible commodities in cold storage and the place where worker are exposed to hot atmosphere.
SWEEP | VOLT/PHASE | SPEED | POWER | TOTAL AIR DELIVERY AT 10 TIMES BLADE SWEEP | |||
---|---|---|---|---|---|---|---|
SINGLE | VOLT | PHASE | R.P.M | WATTS | HP | C.F.M | M / 3HR |
19 | 230 | Single | 1440 | 375 | 0.5 | 7000 | 12000 |
19 | 440 | Three | 1440 | 375 | 0.5 | 7000 | 12000 |
19 | 440 | Three | 2900 | 1800 | 3.0 | 13000 | 22000 |
24 | 230 | Single | 1440 | 500 | 1.0 | 16500 | 28000 |
24 | 440 | Three | 1440 | 500 | 1.0 | 16500 | 28000 |
30 | 440 | Three | 1440 | 1400 | 2.0 | 21500 | 37500 |
36 | 440 | Three | 960 | 1500 | 2.0 | 32500 | 55250 |
36 | 440 | Three | 1440 | 2000 | 3.0 | 37500 | 63750 |
39 | 440 | Three | 960 | 3500 | 5.0 | 37000 | 63000 |
48 | 440 | Three | 960 | 3700 | 5.0 | 43800 | 74500 |
Landline : 033-2225 4430 / 033-4004 0615.
Mobile : +91 98300 41840

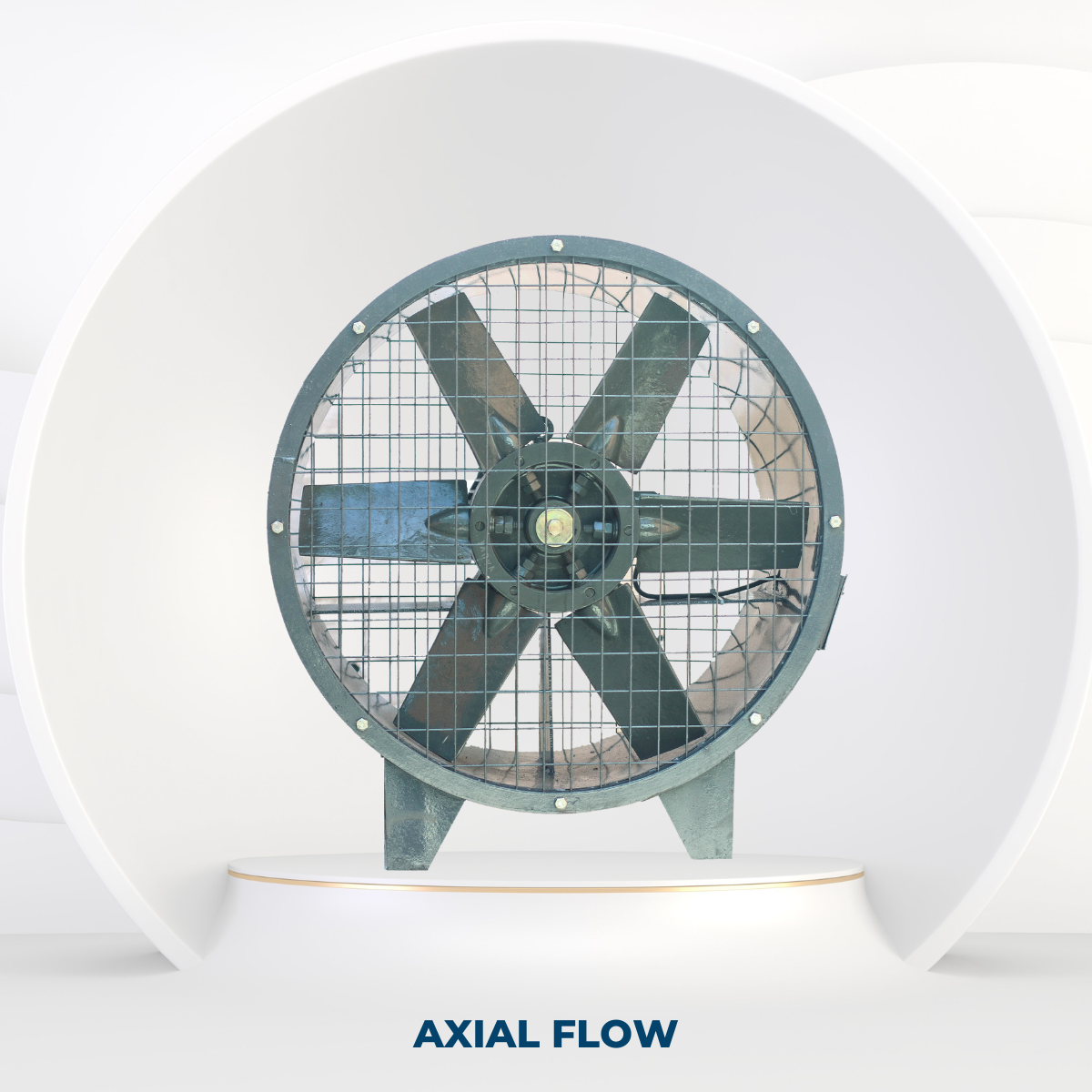

"India Fan" axial flow fans are available in various designs, high efficiency aerofoil section, cast aluminium / mild steel construction.
With statio dynamically balanced impellers ensure high performance at low power rating. These fans are ideal for ventilation fume extraction, exhaust systems etc.
Impeller Dia (mm) | Motor KW (HP) | RPM | Free Air Delivery at F.I. | AIR DELIVERY IN CMH AT DIFFERENT STATIC PRESSURE IN MM OF SWG | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|
5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | ||||
380 | 0.37 (0.5) | 1420 | 3000 | 2550 | 2000 | - | - | - | - | - | - |
380 | 0.75 (1) | 2800 | 5300 | 4950 | 4550 | 4400 | 4250 | 4000 | 3750 | - | - |
482 | 0.37 (0.5) | 1420 | 6000 | 5600 | 4500 | 3000 | - | - | - | - | - |
482 | 0.75 (1) | 1420 | 7000 | 6400 | 5800 | 4200 | - | - | - | - | - |
482 | 1.50 (2) | 1420 | 9500 | 9000 | 8200 | 7750 | 7100 | 6600 | 6000 | 5200 | - |
482 | 2.20 (3) | 2850 | 11000 | 10700 | 10500 | 10000 | 9600 | 9000 | 8500 | 7700 | 6200 |
482 | 3.70 (5) | 2850 | 14500 | 14300 | 14100 | 13800 | 16500 | 13100 | 12700 | 1200 | 11200 |
610 | 0.75 (1) | 950 | 10000 | 9000 | 7500 | - | - | - | - | - | - |
610 | 0.75 (1) | 1420 | 10500 | 10000 | 9200 | 78000 | 6500 | - | - | - | - |
610 | 1.10 (1.5) | 1420 | 13200 | 13000 | 12500 | 10800 | 8500 | - | - | - | - |
610 | 1.50 (2) | 1420 | 14500 | 13800 | 13200 | 11700 | 10000 | - | - | - | - |
610 | 2.20 (3) | 1420 | 16000 | 15500 | 15000 | 17400 | 13500 | - | - | - | - |
610 | 5.50 (7.5) | 2850 | 19500 | 19200 | 19000 | 18800 | 18500 | 17500 | 17000 | 16000 | 15000 |
610 | 7.50 (10) | 2850 | 23000 | 22750 | 22600 | 22400 | 22000 | 21500 | 20900 | 20000 | 19500 |
760 | 0.75 (1) | 950 | 13000 | 11500 | 10000 | 7800 | - | - | - | - | - |
760 | 1.10 (1.5) | 950 | 16000 | 15000 | 13500 | 1000 | - | - | - | - | - |
760 | 1.50 (2) | 950 | 18000 | 16500 | 15500 | 11800 | - | - | - | - | - |
760 | 1.50 (2) | 1425 | 15000 | 14500 | 14000 | 13000 | 11800 | - | - | - | - |
760 | 2.20 (3) | 1425 | 20000 | 19500 | 18600 | 17700 | 16500 | 14200 | 12000 | - | - |
760 | 3.70 (5) | 1425 | 24000 | 23000 | 22000 | 21000 | 20000 | 17000 | 15500 | - | - |
760 | 5.50 (7.5) | 1425 | 30000 | 29500 | 29000 | 27300 | 26700 | 26000 | 24000 | - | - |
914 | 1.50 (2) | 710 | 22100 | 21200 | 18700 | 15300 | - | - | - | - | - |
914 | 2.20 (3) | 710 | 24000 | 23800 | 22000 | 18500 | - | - | - | - | - |
914 | 2.20 (3) | 950 | 25000 | 24600 | 23200 | 19000 | 17200 | - | - | - | - |
914 | 3.70 (5) | 950 | 32000 | 30600 | 28900 | 27000 | 25200 | - | - | - | - |
914 | 5.50 (7.5) | 950 | 40000 | 38200 | 37300 | 34000 | 30000 | - | - | - | - |
914 | 7.50 (10) | 1425 | 38500 | 38000 | 37400 | 36900 | 35500 | 33000 | 30000 | 28100 | 24000 |
914 | 11.0 (15) | 1425 | 46500 | 43800 | 44500 | 43500 | 42400 | 41200 | 40000 | 35700 | 32000 |
914 | 11.0 (15) | 1425 | 46500 | 43800 | 44500 | 43500 | 42400 | 41200 | 40000 | 35700 | 32000 |
1220 | 5.50 (7.5) | 710 | 60000 | 58000 | 52000 | 45000 | 40000 | - | - | - | - |
1220 | 7.50 (10) | 710 | 68000 | 65000 | 60000 | 56000 | 43000 | - | - | - | - |
1220 | 5.50 (7.5) | 960 | 60000 | 57000 | 54000 | 50000 | 44000 | 40000 | 35000 | 3000 | - |
1220 | 7.50 (10) | 960 | 75000 | 73000 | 65000 | 59000 | 53000 | 48000 | 44000 | 41000 | - |
Landline : 033-2225 4430 / 033-4004 0615.
Mobile : +91 98300 41840
"India Fan" air circulators have been the prime choice of the people for many decades. 'India fan' air circulators are aero - dynamically designed for large air displacement, 'India fan' air Circulators have a guaranteed performance as per is 2997 to 1964.
"India Fan" air circulators are available in both pedestal and wall mounted type with titling and swiveling arrangement. Oscillating models are also available.
"India Fan" air circulators are widely used in homes, offices, hotels, Restaurants, auditorium and industries - wherever there is a need for high air delivery for a long distance.
Model | Sweep | A.C.supply (50 Cycles) | R.P.M | Power (watts) | Feet from Fan | cfm | m3/hr | ||
---|---|---|---|---|---|---|---|---|---|
Inch | mm | Wings | |||||||
Minor | 18 | 450 | 4 | 220/440v | 1400 | 90 | 9 | 7050 | 1200 |
Major | 24 | 600 | 2 | 220/440v | 1400 | 115 | 12 | 10,000 | 17,000 |
Shakti | 24 | 600 | 3 | 220/440v | 1400 | 125 | 12 | 11,000 | 18,000 |
Industrial | 24 | 600 | 4 | 220/440v | 1400 | 160 | 12 | 12,000 | 20,400 |
Heavy Industrial | 30 | 762 | 4 | 220/440v | 1400 | 200 | 15 | 16,000 | 27,200 |
